Sitecore Next.js Placeholder

A placeholder in Sitecore is a section of the page where we wish to allow content editors to add components to.

So far we've only been able to add components to the jss-main placeholder. In a typical article page, you would have a 2 column layout with main content in the middle and some additional content on the side.

For this lesson, we will create two placeholders: main-content and aside.

Create placeholder settings

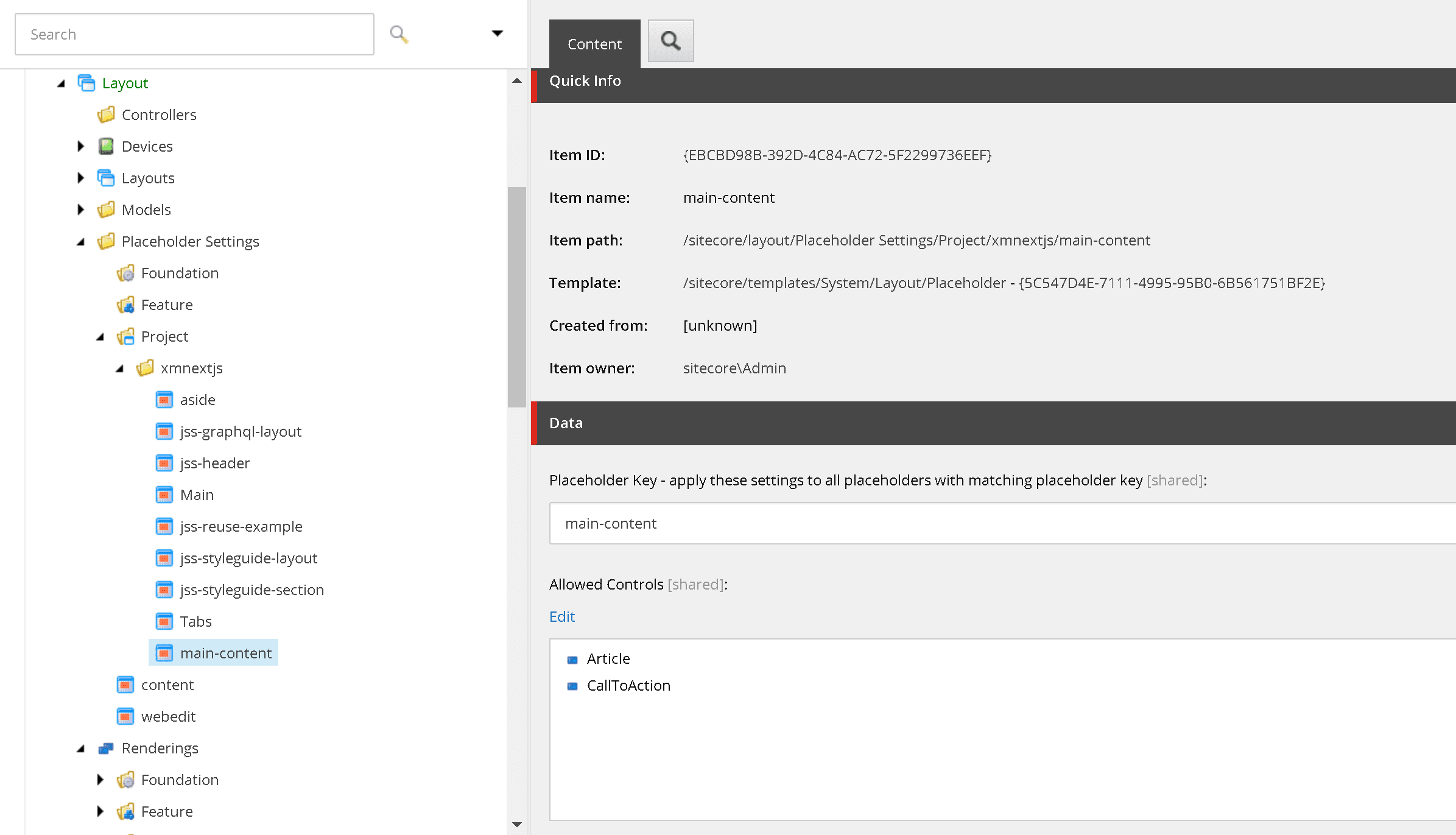

1. Navigate to /sitecore/layout/Placeholder Settings/Project/xmnextjs
2. Insert a placeholder aside
   1. Add CallToAction to Allowed Controls
3. Insert a placeholder main-content
   1. Add Article to Allowed Controls
   2. Add CallToAction to Allowed Controls

Create rendering to hold the layout

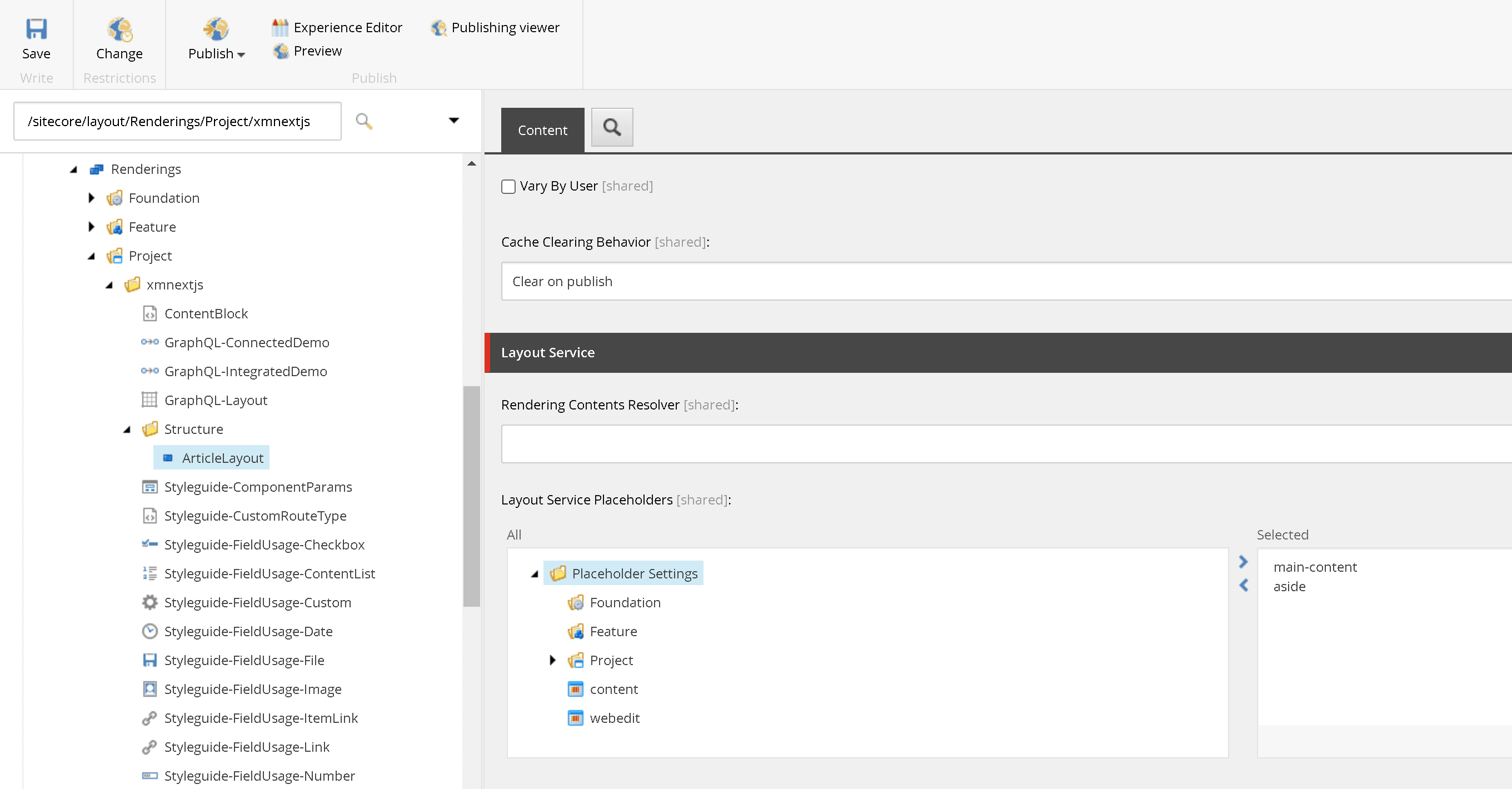

1. Navigate to /sitecore/layout/Renderings/Project/xmnextjs
2. Create a rendering folder Structure
3. Insert rendering ArticleLayout
   1. Scroll to the bottom to Layout Service Placeholders
   2. Add main-content and aside
4. Once we've created this rendering, we'll need to allow this to be added to the jss-main placeholder
   1. Navigate to /sitecore/layout/Placeholder Settings/Project/xmnextjs/jss-main
      1. Remember the display name is Main
   2. Add ArticleLayout which you just created to the Allowed Controls

Create the component

To create placeholders in our component, import the Placeholder component from @sitecore-jss/sitecore-jss-nextjs. Make sure when specifying where the placeholder goes to match the name prop with the placeholder key specified under the placeholder settings.

import { Placeholder } from '@sitecore-jss/sitecore-jss-nextjs';
import { ComponentProps } from 'lib/component-props';

const ArticleLayout = ({ rendering }: ComponentProps): JSX.Element => {
  return (
    <div className="row">
      <section className="col-8">
        <Placeholder name="main-content" rendering={rendering} />
      </section>
      <aside className="col-4">
        <Placeholder name="aside" rendering={rendering} />
      </aside>
    </div>
  );
};

export default ArticleLayout;

Update page rendering

At this point, we can start rearranging the components to our article pages. We will update the Standard Values item so that all of our article pages are updated.

1. Navigate to /sitecore/templates/Project/xmnextjs/Article Route/__Standard Values
2. Edit this item in Experience Editor
   1. Publish > Experience Editor
   2. Note: To get Experience Editor to work with Standard Values, add &sc_jssapp=xmnextjs to the URL where xmnextjs is the name of your site.
3. You should see our previous components (from previous lessons) Article, CallToAction, and checkered areas on the page. The checkered areas are our new placeholders.

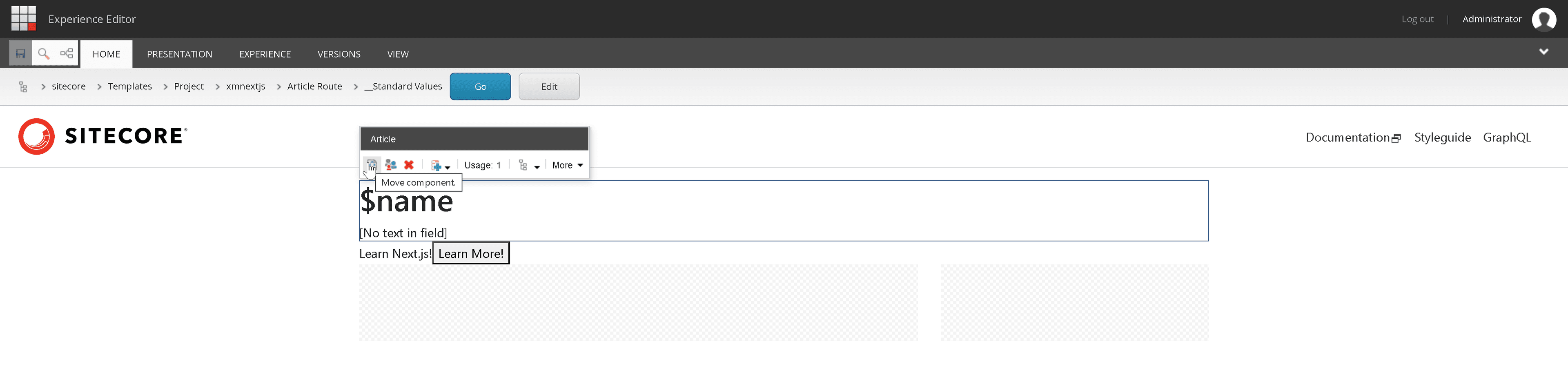

4. Click somewhere on a blank spot to the right of the Article component.
   Some options should show up. Click on the Move component.
   1. Notice there is only one placeholder where you can move this component to. Move it to the main-content placeholder.
5. Select the CallToAction component and click on the Move component
   1. Notice there are multiple places where you can move this component to. Why is this?
   2. Move it to the aside placeholder
6. Save the page and publish
7. Visit any of your article pages and notice that your components are now side by side.
