Build a Sitecore Next.js component using GraphQL connected mode

Connected GraphQL in Sitecore executes GraphQL queries directly against the Sitecore GraphQL endpoint. In contrast to the integrated GraphQL, this is an additional call - one to the Layout Service (to get data about datasource/page item data) and one to the Sitecore GraphQL endpoint for your component data.

Sitecore Integrated GraphQL Diagram

In this guide, we will learn how to build a Sitecore Next.js component using GraphQL in connected mode. We will build a main navigation so that it pulls data from Sitecore.

If you haven't already, make sure you've created the navigation items. Also, see how we've tested and build our GraphQL query.

Our navigation items has the following structure: Navigation items

And our GraphQL query (note we've changed the query name):

QUERY
query MainNavigationConnectedQuery($datasource: String!, $language: String!) {
  datasource: item(path: $datasource, language: $language) {
    id
    name
    children {
      results {
        id
        name
        ... on NavigationItem {
          navigationLink {
            jsonValue
          }
        }
      }
    }
  }
}

Create Navigation Json rendering

In the Content Editor,

  1. Navigate to /sitecore/layout/Renderings/Feature and create a Navigation rendering folder if it hasn't been created yet
  2. Under the Navigation folder, create a Json rendering MainNavigationConnected
  3. On the MainNavigationConnected item, set fields
    1. Datasource Location: /sitecore/content/XmNextJs/Navigation
    2. Datasource Template: /sitecore/templates/Feature/Navigation/Navigation Folder
💡

In contrast to the Integrated mode, we do not enter the GraphQL into Component GraphQL Query here.

Layout clean up

Skip to placeholder updates, if you did this previously in the Integrated mode excercise.

If you did not do the layout cleanup from the Integrated mode excercise, we'll have to update the src\rendering\src\Layout.tsx. Notice that the Navigation component is outside of the jss-main placeholder. We'll need to clean this up and add a placeholder to hold our new MainNavigationComponent rendering.

src\rendering\src\Layout.tsx
return (
    <>
      <Scripts />
      <Head>
        <title>{fields.pageTitle.value.toString() || 'Page'}</title>
        <link rel="icon" href={`${publicUrl}/favicon.ico`} />
      </Head>

      <Navigation />
      {/* root placeholder for the app, which we add components to using route data */}
      <div className="container">{route && <Placeholder name="jss-main" rendering={route} />}</div>
    </>
  );
  1. Remove the Navigation component
  2. Add a jss-header placeholder
  3. While we're here, let's make our HTML more semantic
    1. Wrap the jss-header placeholder with <header>
    2. Change div.container to main.container
src\rendering\src\Layout.tsx
return (
  <>
    <Scripts />
    <Head>
      <title>{fields.pageTitle.value.toString() || 'Page'}</title>
      <link rel="icon" href={`${publicUrl}/favicon.ico`} />
    </Head>

    <header>
      {route && <Placeholder name="jss-header" rendering={route} />}
    </header>
    {/* root placeholder for the app, which we add components to using route data */}
    <main className="container">{route && <Placeholder name="jss-main" rendering={route} />}</main>
  </>
);

Placeholder updates

We previously learned the steps necessary to add a placeholder - we'll have to do the same steps here for our jss-header placeholder.

In the Content Editor,

  1. Update the jss-header placeholder setting to allow the MainNavigationConnected rendering.
    1. Navigate to /sitecore/layout/Placeholder Settings/Project/xmnextjs/jss-header
    2. Under the Allowed Controls, add MainNavigationConnected
  2. Update the xmnextjs Layout to render jss-header data. This was previously done on the integrated mode excercise.
    1. Navigate to /sitecore/layout/Layouts/Project/xmnextjs/xmnextjs Layout
    2. Under Layout Service Placeholders field, add jss-header

Add rendering

We would like to add the MainNavigationConnected rendering to every page. It is generally a good idea to create a base page template and have other page templates inherit from this template. Fortunately for us, in our create a page template tutorial, we decided to use the App Route as our base template (Article Route inherits from this template). We'll continue to do the same.

  1. Navigate to /sitecore/templates/Project/xmnextjs/App Route/__Standard Values. Create the Standard Values, if it wasn't already created.
  2. Under Presentation > Details > Shared Layout, change the MainNavigationIntegrated rendering to the MainNavigationConnected rendering, keeping the same placeholder and data source.
    1. Placeholder: jss-header
    2. Data Source: /sitecore/content/XmNextJs/Navigation/Header

In Sitecore, publish our changes.

Layout Service

Let's check our Layout Service and see what gets returned.

In a browser, open https://cm.xmnextjs.localhost/sitecore/api/layout/render/jss?item=/&sc_apikey={YOUR API KEY}&sc_mode=normal

{
	"sitecore": {
    ...
		"route": {
			"placeholders": {
				...
				"jss-header": [
					{
						"uid": "b1e781a3-a93a-42e5-8ae5-fb3feefbf6a9",
						"componentName": "MainNavigationConnected",
						"dataSource": "{2CD2AB0A-034B-474A-891B-87F8B883C0A8}",
						"params": {},
						"fields": {}
					}
				]
			}
		}
	}
}
💡

In contrast to the integrated mode, the layout service does not contain your GraphQL data.

GraphQL Types Update

Since GraphQL is strongly typed, we'll need to let the Next.js application know about the Navigation Item template we've created.

Publish Sitecore templates

Publish the Sitecore templates so that they are available on the web database

Update introspection data

On src/rendering directory execute the command:

jss graphql:update

This will update src\rendering\src\temp\GraphQLIntrospectionResult.json with data about the Navigation Item.

Create GraphQL

Create the GraphQL file

Under the src\components\Feature\Navigation folder create a MainNavigationConnectedQuery.graphql file and paste in the query we created.

src\rendering\src\components\Feature\Navigation\MainNavigationConnectedQuery.graphql
query MainNavigationConnectedQuery($datasource: String!, $language: String!) {
  datasource: item(path: $datasource, language: $language) {
    id
    name
    children {
      results {
        id
        name
        ... on NavigationItem {
          navigationLink {
            jsonValue
          }
        }
      }
    }
  }
}

Generate types

We'll need to regenerate the types so that our tsx files are aware of the NavigationItem template. On src/rendering execute:

npm run bootstrap

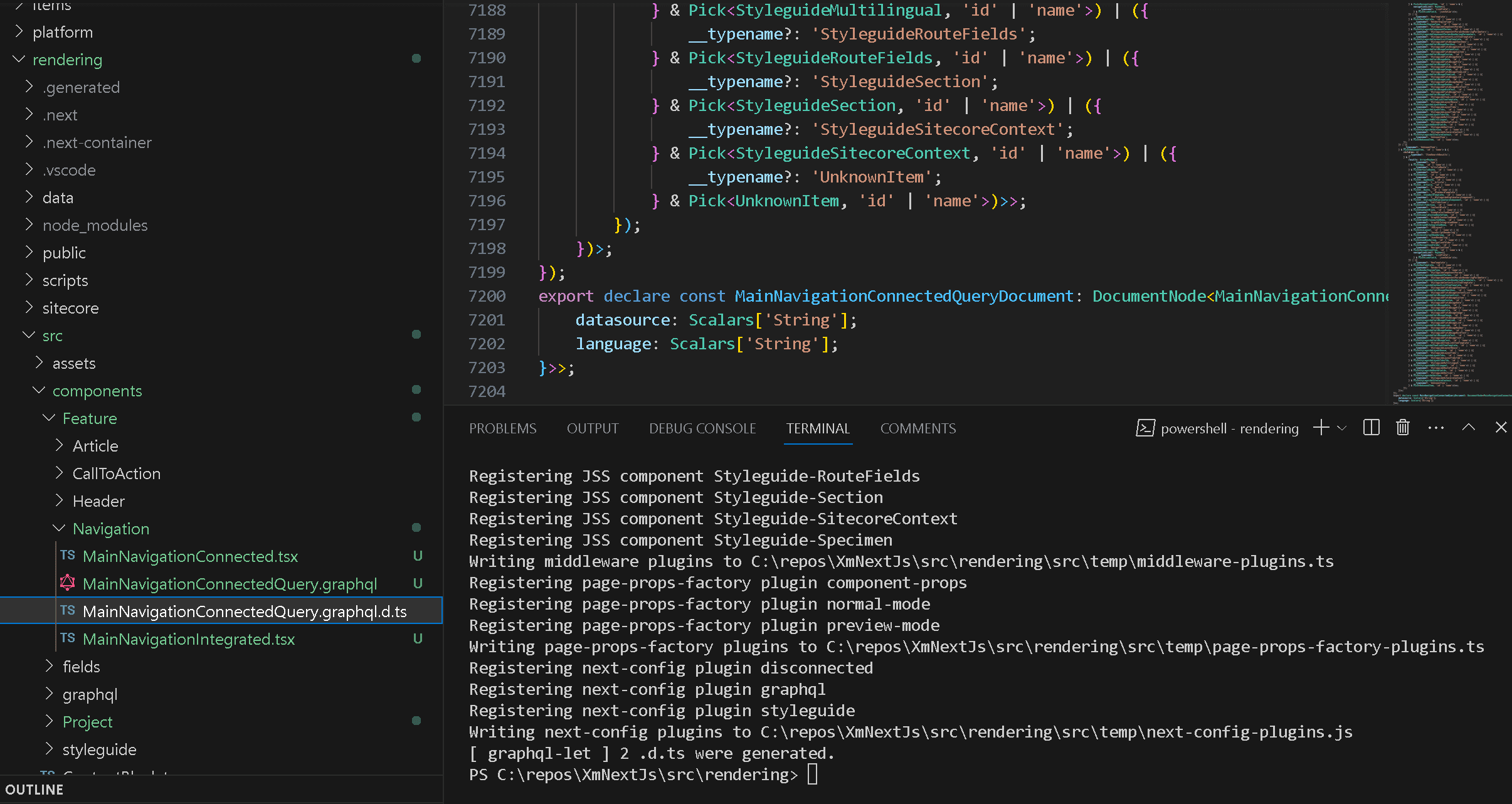

You should see a MainNavigationConnectedQuery.graphql.d.ts type file generated on same directory as your GraphQL file.

Regenerate type

Alternatively, restarting your rendering host application will also generate the types.

Create component

We are now ready to create our Main Navigation component using GraphQL in connected mode.

Create a type

Create a type that corresponds to our expect GraphQL return.

src\rendering\src\components\Feature\Navigation\MainNavigationConnected.tsx
import {
    NavigationItem,
} from './MainNavigationConnectedQuery.graphql';

type NavigationData = {
  id: string,
  name: string,
  children: {
    results: Array<NavigationItem>
  }
}

Add HTML

Add some HTML. Note that we're not rendering the navigation items just yet.

src\rendering\src\components\Feature\Navigation\MainNavigationConnected.tsx
import {
    NavigationItem,
} from './MainNavigationConnectedQuery.graphql';

type NavigationData = {
  id: string,
  name: string,
  children: {
    results: Array<NavigationItem>
  }
}

const MainNavigationConnected = (): JSX.Element => {
  return (
    <div className="d-flex flex-column flex-md-row align-items-center p-3 px-md-4 mb-3 bg-white border-bottom">
      <h5 className="my-0 mr-md-auto font-weight-normal">
        <a className="text-dark" href="/">
          <img src={`/sc_logo.svg`} alt="Sitecore" />
        </a>
      </h5>
      <nav className="my-2 my-md-0 mr-md-3">
        {/* nav here */}
      </nav>
    </div>
  );
};

export default MainNavigationConnected;

Use GraphQL to get data

src\rendering\src\components\Feature\Navigation\MainNavigationConnected.tsx
import {
  GetStaticComponentProps,
  GraphQLRequestClient,
} from '@sitecore-jss/sitecore-jss-nextjs';
import {
    MainNavigationConnectedQueryDocument,
    NavigationItem,
} from './MainNavigationConnectedQuery.graphql';

type NavigationData = {
  id: string,
  name: string,
  children: {
    results: Array<NavigationItem>
  }
}

const MainNavigationConnected = (): JSX.Element => {
  return (
    <div className="d-flex flex-column flex-md-row align-items-center p-3 px-md-4 mb-3 bg-white border-bottom">
      <h5 className="my-0 mr-md-auto font-weight-normal">
        <a className="text-dark" href="/">
          <img src={`/sc_logo.svg`} alt="Sitecore" />
        </a>
      </h5>
      <nav className="my-2 my-md-0 mr-md-3">
        {/* nav here */}
      </nav>
    </div>
  );
};

/**
 * Will be called during SSG
 * @param {ComponentRendering} rendering
 * @param {LayoutServiceData} layoutData
 * @param {GetStaticPropsContext} context
 */
export const getStaticProps: GetStaticComponentProps = async (rendering, layoutData) => {
    const graphQLClient = new GraphQLRequestClient(config.graphQLEndpoint, {
      apiKey: config.sitecoreApiKey,
    });

    const result = await graphQLClient.request<NavigationData>(
      // eslint-disable-next-line @typescript-eslint/no-explicit-any
      MainNavigationConnectedQueryDocument as any,
      {
        datasource: rendering.dataSource,
        language: layoutData?.sitecore?.context?.language,
      }
    );

    return result;
};

export default MainNavigationConnected;

For Server Side Rendering, replace getStaticProps with getServerSideProps.

import {
  getServerSideProps,
} from '@sitecore-jss/sitecore-jss-nextjs';

export const getServerSideProps: GetServerSideComponentProps = async (rendering, layoutData) => {

  const graphQLClient = new GraphQLRequestClient(config.graphQLEndpoint, {
    apiKey: config.sitecoreApiKey,
  });

  const result = await graphQLClient.request<NavigationData>(
    // eslint-disable-next-line @typescript-eslint/no-explicit-any
    MainNavigationConnectedQueryDocument as any,
    {
      datasource: rendering.dataSource,
      language: layoutData?.sitecore?.context?.language,
    }
  );

  return result;
};

The MainNavigationConnectedQueryDocument type can be found the under the generated type file. The MainNavigationConnectedQueryDocument type contains properties to pass to the GraphQL query.

export declare const MainNavigationConnectedQueryDocument: DocumentNode<MainNavigationConnectedQueryQuery, Exact<{
    datasource: Scalars['String'];
    language: Scalars['String'];
}>>;

Confirm data

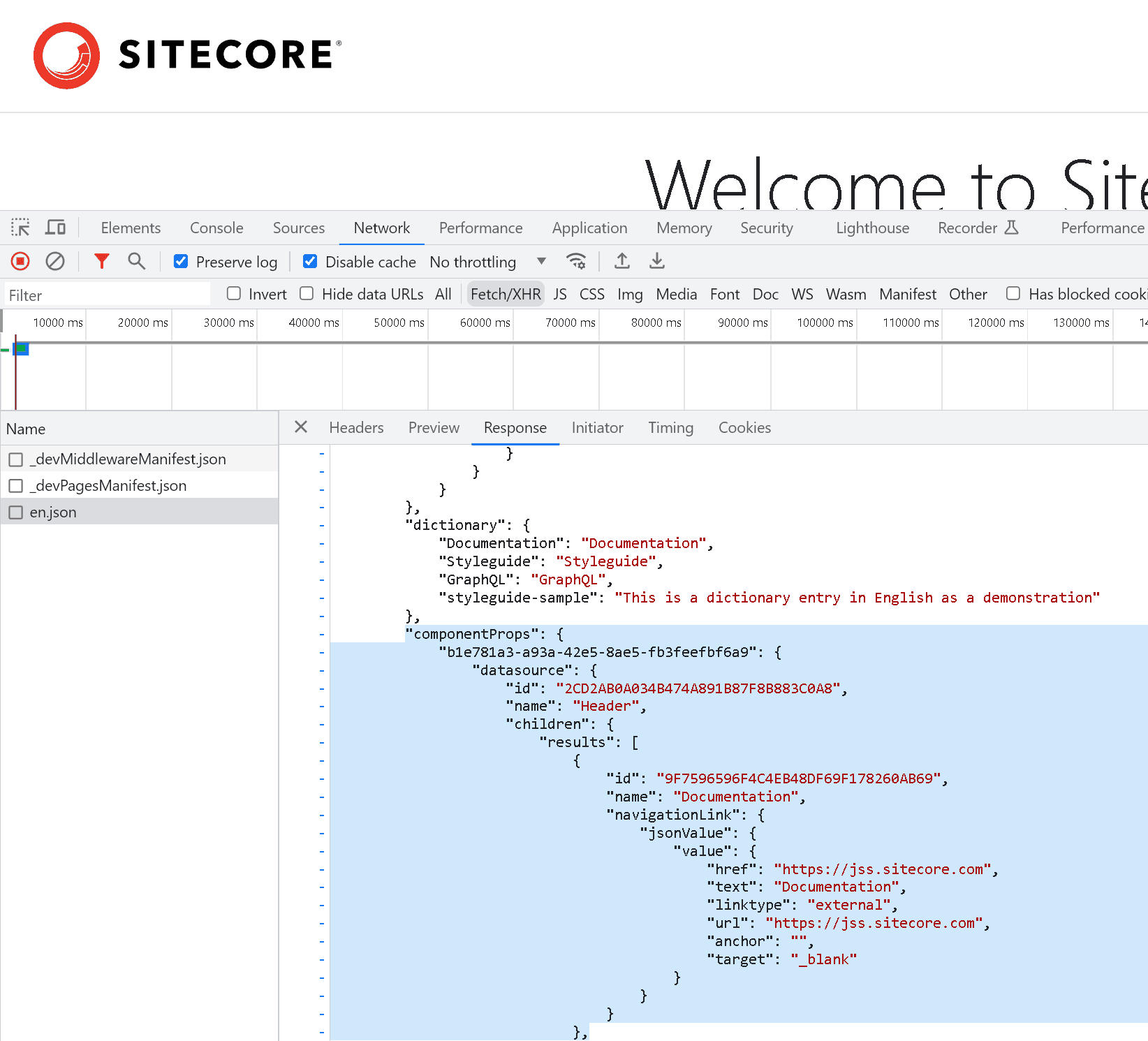

Visit your home page and confirm the GraphQL call _next/data/development/en.json

next/data/development/en

Map and render data

Once we've confirmed that the data returns, let's map and render our data. We'll do some clean up as well.

src\rendering\src\components\Feature\Navigation\MainNavigationConnected.tsx
import { Link } from '@sitecore-jss/sitecore-jss-nextjs'
import {
    GetStaticComponentProps,
    constants,
    GraphQLRequestClient,
    withDatasourceCheck,
  } from '@sitecore-jss/sitecore-jss-nextjs';
import {
    MainNavigationConnectedQueryDocument,
    NavigationItem,
} from './MainNavigationConnectedQuery.graphql';
import config from 'temp/config';
import { ComponentProps } from 'lib/component-props';

type NavigationData = {
  id: string,
  name: string,
  children: {
    results: Array<NavigationItem>
  }
}
type MainNavigationProps = ComponentProps & {
    datasource: NavigationData
}

const MainNavigationConnected =(props: MainNavigationProps): JSX.Element => {
  // loop through the datasource children and grab all the jsonValues
  let navigationItems = props.datasource?.children.results.map(i => i.navigationLink?.jsonValue);

  return (
    <div className="d-flex flex-column flex-md-row align-items-center p-3 px-md-4 mb-3 bg-white border-bottom">
      <h5 className="my-0 mr-md-auto font-weight-normal">
        <a className="text-dark" href="/">
          <img src={`/sc_logo.svg`} alt="Sitecore" />
        </a>
      </h5>
      <nav className="my-2 my-md-0 mr-md-3">
        {/*
          The Link component expects an object on the field property with the structure
              "value": {
                "href": "...",
                "text": "...",
                "linktype": "...",
                "url": "...",
                "anchor": "...",
                "target": "..."
              }
        */}
        { navigationItems && navigationItems.map((item, index) => (
            <Link
              key={index}
              field={item}
              className='p-2 text-dark'
            />
          ))
        }
      </nav>
    </div>
  );
};

/**
 * Will be called during SSG
 * @param {ComponentRendering} rendering
 * @param {LayoutServiceData} layoutData
 * @param {GetStaticPropsContext} context
 */
export const getStaticProps: GetStaticComponentProps = async (rendering, layoutData) => {
    if (process.env.JSS_MODE === constants.JSS_MODE.DISCONNECTED) {
      return null;
    }
    const graphQLClient = new GraphQLRequestClient(config.graphQLEndpoint, {
      apiKey: config.sitecoreApiKey,
    });

    const result = await graphQLClient.request<NavigationData>(
      // eslint-disable-next-line @typescript-eslint/no-explicit-any
      MainNavigationConnectedQueryDocument as any,
      {
        datasource: rendering.dataSource,
        language: layoutData?.sitecore?.context?.language,
      }
    );

    return result;
};

export default withDatasourceCheck()<ComponentProps>(MainNavigationConnected);
💡

Knowledge check:

  1. What is the connected GraphQL mode in Sitecore?
  2. Where do you enter the GraphQL query in connected mode?
  3. In connected mode, does the GraphQL data come from the Layout Service? If not, where does it come from?
  4. How do you regenerate the GraphQL introspection data?
  5. How do you regenerate types that corresponds to Sitecore templates?
