xGraph Browser - Build Sitecore GraphQL queries

Sitecore's xGraph Browser is a tool that allows developers to explore and query Sitecore content using GraphQL. For this portion of the lesson, we learn how to build a GraphQL query against our navigation items.

To get to it, visit {CM_DOMAIN}/sitecore/api/graph/edge/ui e.g. https://cm.xmnextjs.localhost/sitecore/api/graph/edge/ui

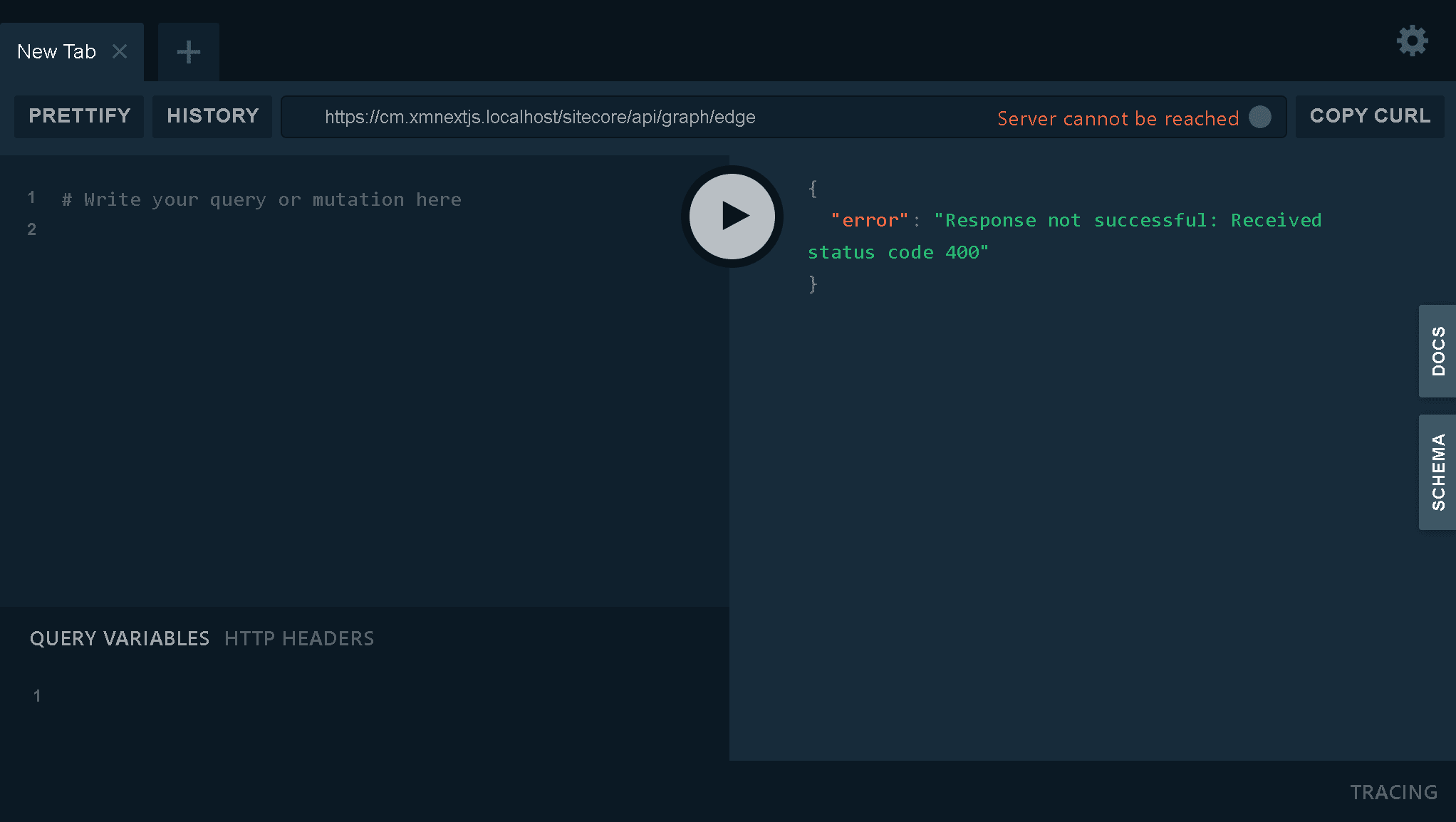

xGraph Browser

There are three (3) areas in the xGraph browser:

Area to build your GraphQL query
Area to pass in query variables and HTTP headers
Result of the query

Build GraphQL query

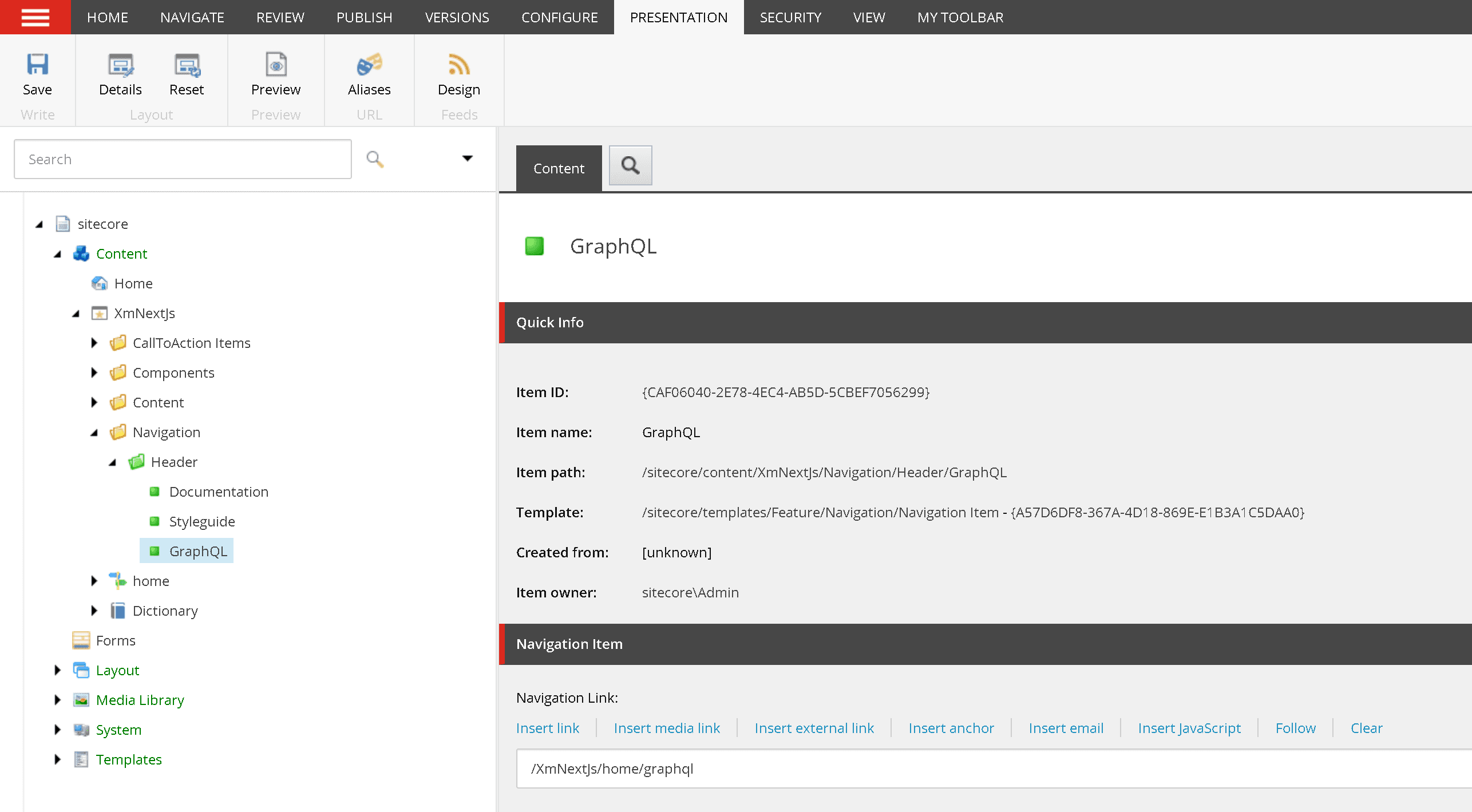

Our navigation items has the following structure:

In the xGraph Browser, we will build a GraphQL query that takes a datasource item (like the Header item). From this item, we will grab all of the children items and retrieve its field information.

Prerequisite - API key

To execute a query, we must pass in an API key. You can find your API key under /sitecore/system/Settings/Services/API Keys. It is the item ID of the item under that path. You can also find this API key under src\rendering\scjssconfig.json.

In the xGraph Browser, enter the following under HTTP HEADERS. NOTE: Enter your actual API key.

HTTP HEADERS

{
  "sc_apikey": "6924E4B6-DA0E-44FB-AE25-8C7A8FA2DFBF"
}

Simple item query

The first query we're going to do is build is a simple item query with a property name of datasource. We will retrieve the /sitecore/content/XmNextJs/Navigation/Header item with en language and it's id and name fields.

QUERY

{
  datasource: item(path: "/sitecore/content/XmNextJs/Navigation/Header", language: "en") {
    id
    name
  }
}

RESULT

{
  "data": {
    "datasource": {
      "id": "2CD2AB0A034B474A891B87F8B883C0A8",
      "name": "Header"
    }
  }
}

💡

Your id value may be different. This is normal.

Grab the children items

The items we're interested in is the children items which will eventually be a collection of navigation items.

QUERY

{
  datasource: item(path: "/sitecore/content/XmNextJs/Navigation/Header", language: "en") {
    id
    name
    children {
      results {
        id
        name
      }
    }
  }
}

RESULT

{
  "data": {
    "datasource": {
      "id": "2CD2AB0A034B474A891B87F8B883C0A8",
      "name": "Header",
      "children": {
        "results": [
          {
            "id": "9F7596596F4C4EB48DF69F178260AB69",
            "name": "Documentation"
          },
          {
            "id": "5E8BDF17C5B54E04AF602652E74D2494",
            "name": "Styleguide"
          },
          {
            "id": "CAF060402E784EC4AB5D5CBEF7056299",
            "name": "GraphQL"
          }
        ]
      }
    }
  }
}

Inline fragments

From the children items, we're interested in the Navigation Link field which is from the Navigation Item template we built earlier. The technique we're utilizing is known as inline fragments (opens in a new tab). As you can see, strongly typed queries are supported.

QUERY

{
  datasource: item(path: "/sitecore/content/XmNextJs/Navigation/Header", language: "en") {
    id
    name
    children {
      results {
        id
        name
        ... on NavigationItem {
          navigationLink {
            jsonValue
          }
        }
      }
    }
  }
}

RESULT

...
      "children": {
        "results": [
          {
            "id": "9F7596596F4C4EB48DF69F178260AB69",
            "name": "Documentation",
            "navigationLink": {
              "jsonValue": {
                "value": {
                  "href": "https://jss.sitecore.com",
                  "text": "Documentation",
                  "linktype": "external",
                  "url": "https://jss.sitecore.com",
                  "anchor": "",
                  "target": "_blank"
                }
              }
            }
          },
...

Named queries and arguments

At this point, we have all the information we need to build our navigation. However, our query is hardcoded. Let's refactor it so that it is more robust and able to take both the path and the language as arguments.

QUERY

query MainNavigationIntegratedQuery($datasource: String!, $language: String!) {
  datasource: item(path: $datasource, language: $language) {
    id
    name
    children {
      results {
        id
        name
        ... on NavigationItem {
          navigationLink {
            jsonValue
          }
        }
      }
    }
  }
}

Notice how we declare a type for each argument. By default, GraphQL comes with these scalar types.

Int - signed 32‐bit integer
Float - signed double-precision
String - UTF‐8 string.
Boolean - binary, true or false
ID - unique identifier serialized as a string

Query variables

When we created arguments on our query, we must pass in the values to our query. On the bottom left-hand corner of the xGraph Browser, under QUERY VARIABLES, enter:

QUERY VARIABLES

{
  "datasource":"/sitecore/content/XmNextJs/Navigation/Header",
  "language": "en"
}

You should have the same result as before.

RESULT

{
  "data": {
    "datasource": {
      "id": "2CD2AB0A034B474A891B87F8B883C0A8",
      "name": "Header",
      "children": {
        "results": [
          {
            "id": "9F7596596F4C4EB48DF69F178260AB69",
            "name": "Documentation",
            "navigationLink": {
              "jsonValue": {
                "value": {
                  "href": "https://jss.sitecore.com",
                  "text": "Documentation",
                  "linktype": "external",
                  "url": "https://jss.sitecore.com",
                  "anchor": "",
                  "target": "_blank"
                }
              }
            }
          },
          ...
        ]
      }
    }
  }
}

We have learned how to build a GraphQL using the xGraph Browser. Please see the next lesson on how to build a navigation component from this query.

💡

Knowledge check:

What tool do you use to test out GraphQL queries against Sitecore data?
How do you authenticate your query?
How do you get the item id, name, and children?
How do you build named queries and pass in arguments?
